creating a suv model from a box

hi friends. Today we are going todo try our hands on that incredible modeling technique in 3ds Max, the box modeling well be creating a simple suv model from a box.


Before that i assume that you are having that basic idea in max.
* well start our things by placing a box in the viewport with these dimensions 90,50,50 and for the segments, well go for 6,6,6.

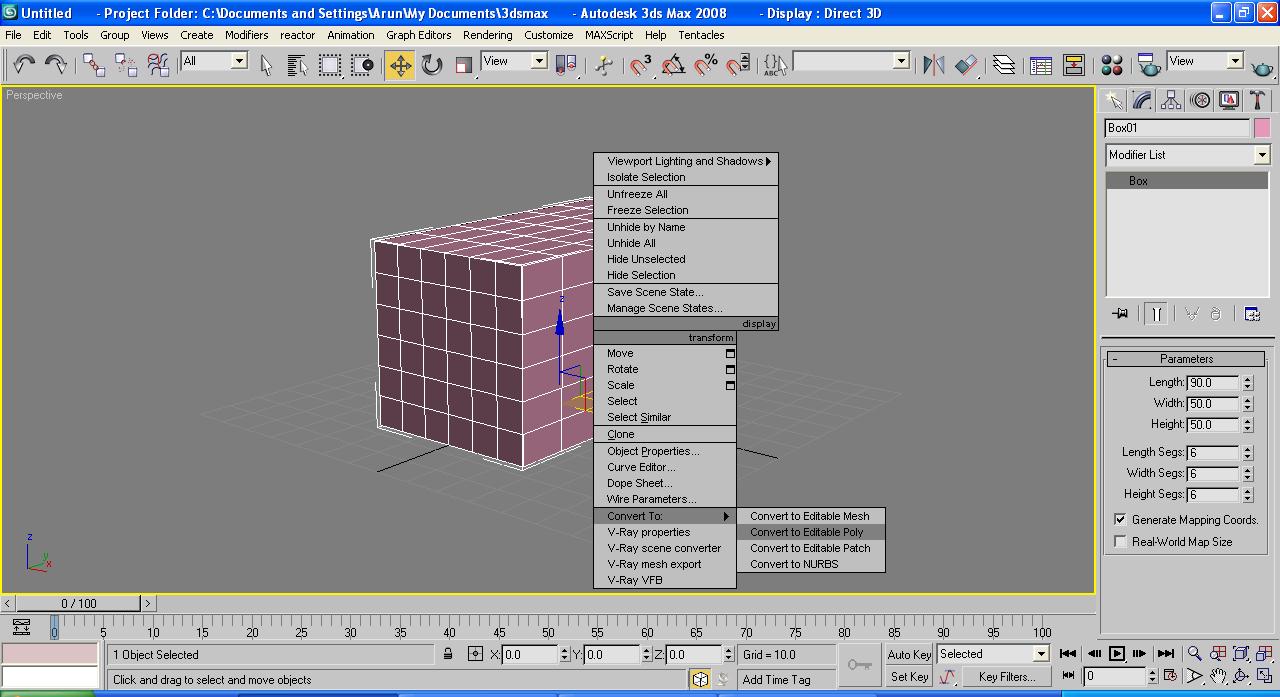

* After that well convert our box into an editable polygon(right click>convert to>Editable Poly).

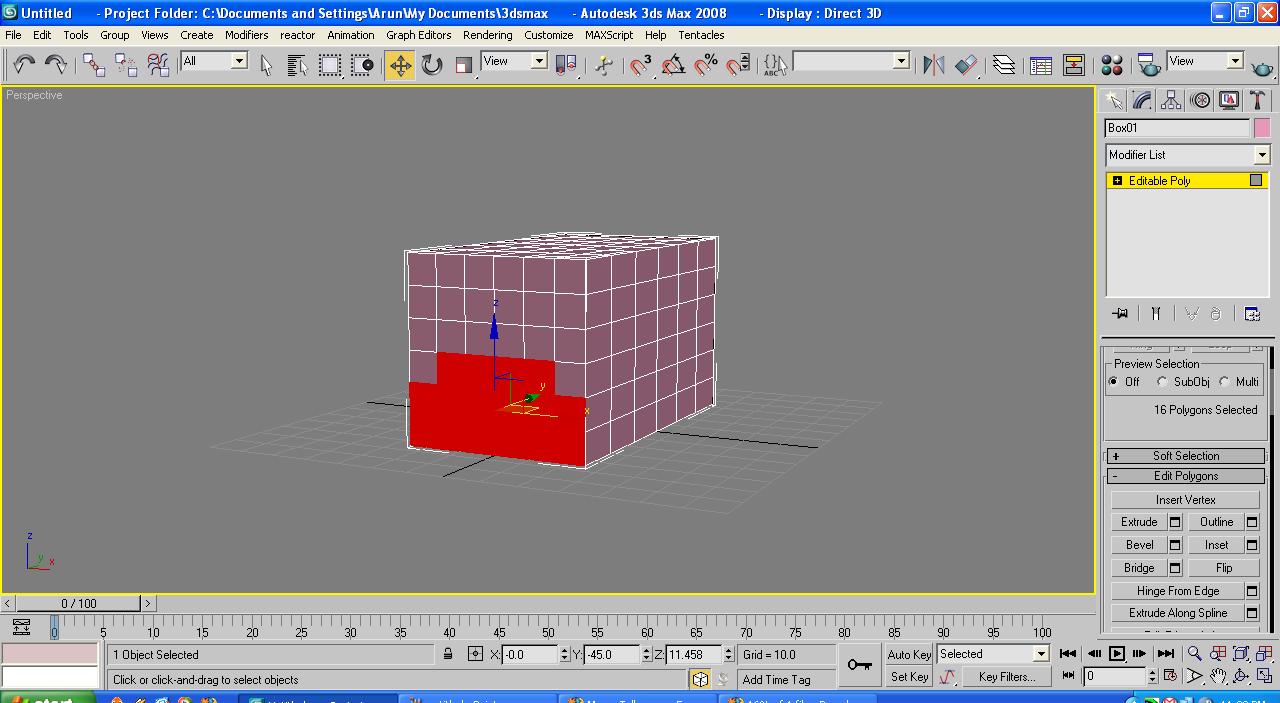

* then select the polygon sublevel and select the Polygons shown in the picture, we are going todo make the front área of our suv.

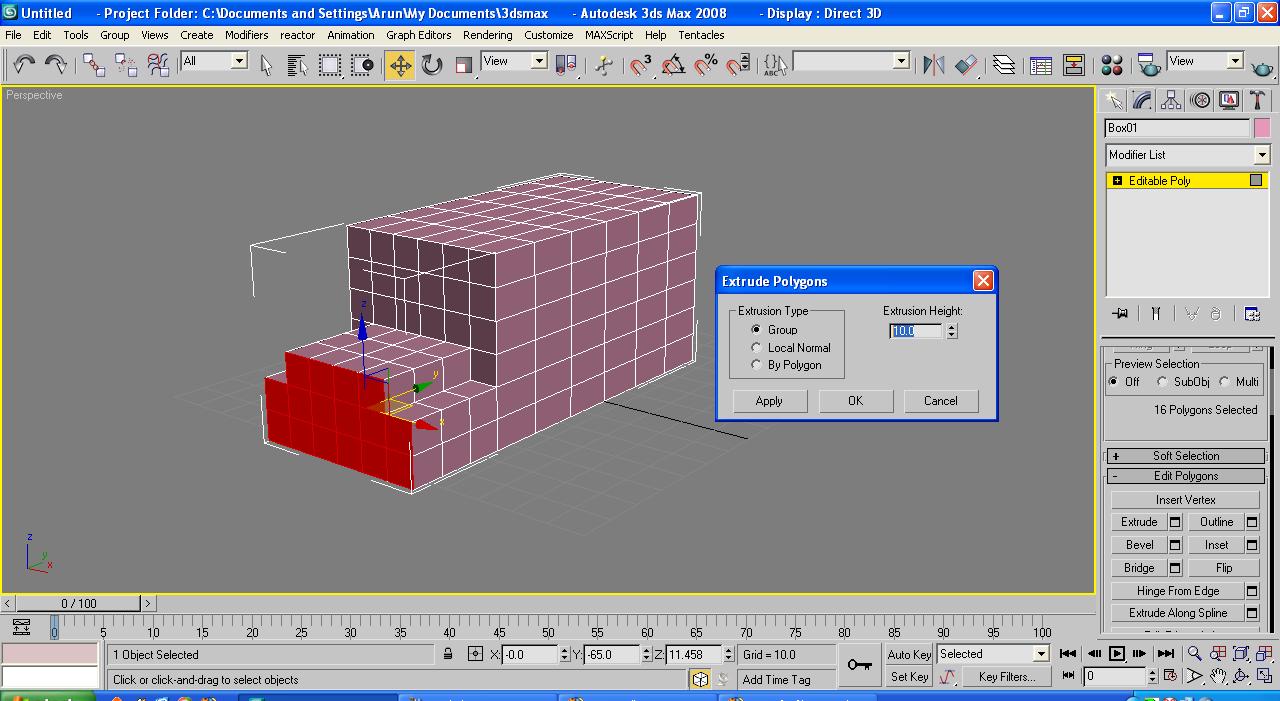

* we Will use the extrude option and use the default value for extruding the selected Polygons thrice for the Bonnet.

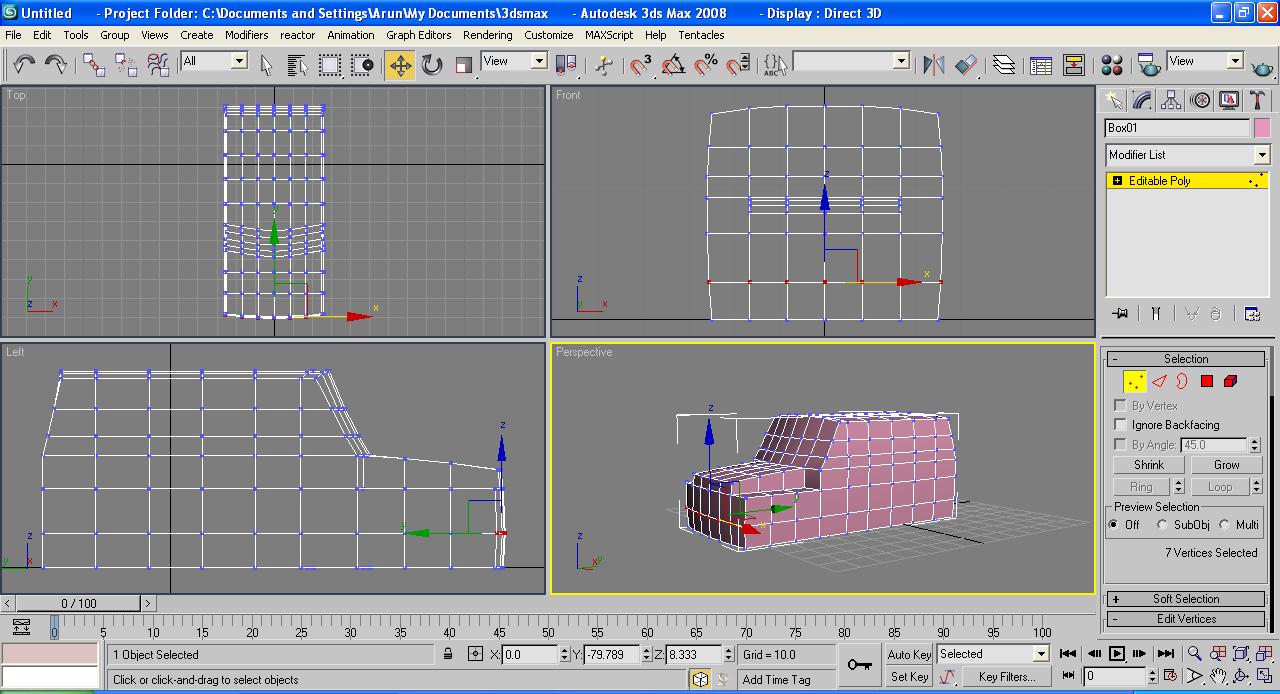

* select the vertex sub level and adjust the vértices in all viewports for getting the shape shown in the picture.

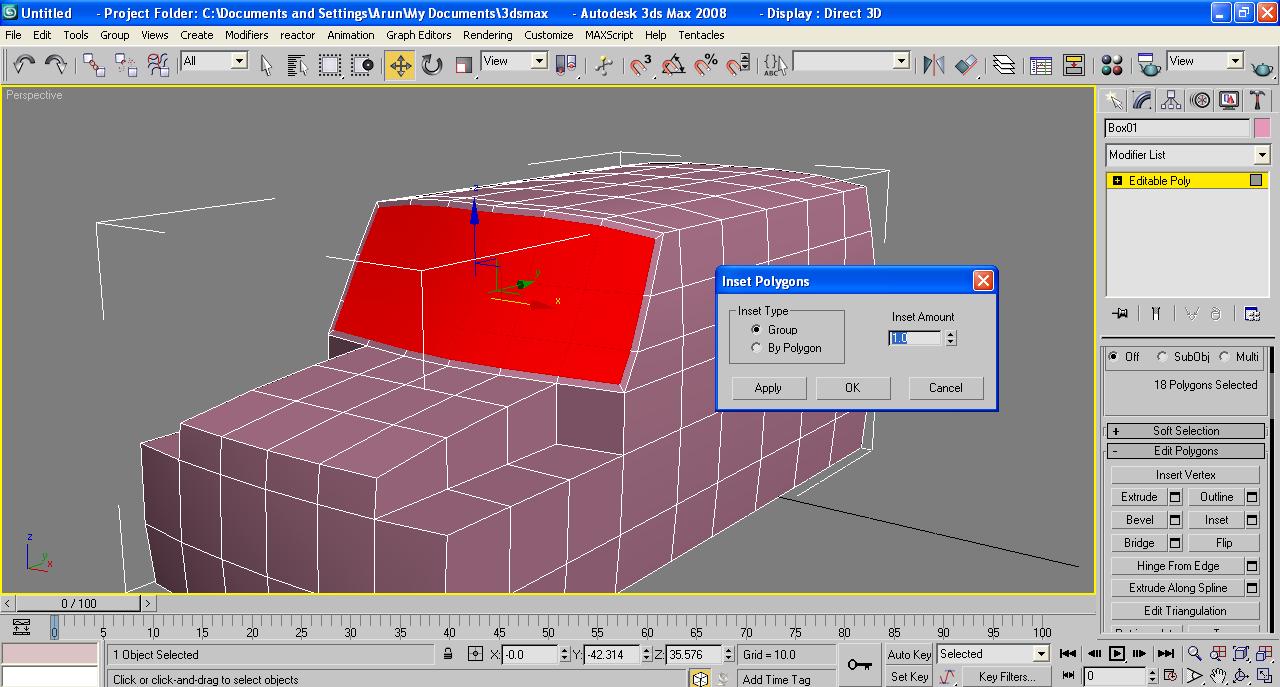

* now select the Polygons shown in the picture for creating the front Glass and then inset them with a small value, y used 1.0.

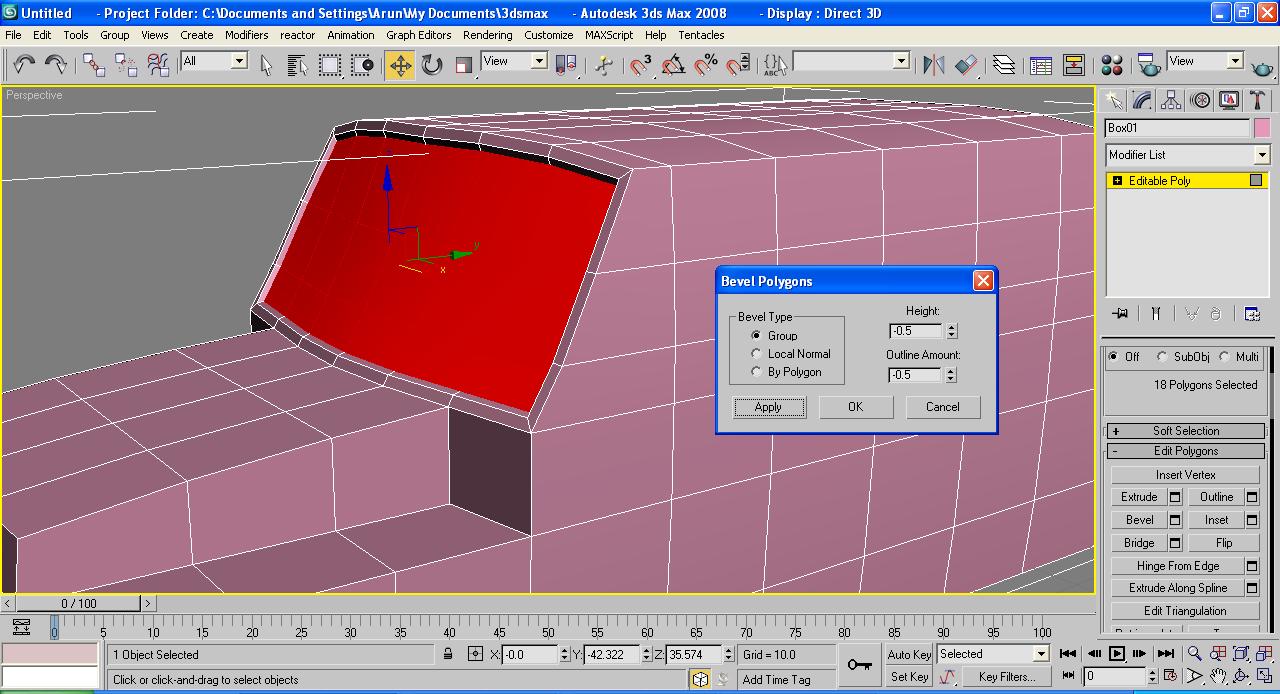

* for the same Polygons we are going todo apply a bevel with both height and inset are -.5.


* use the same method for window glasses also.

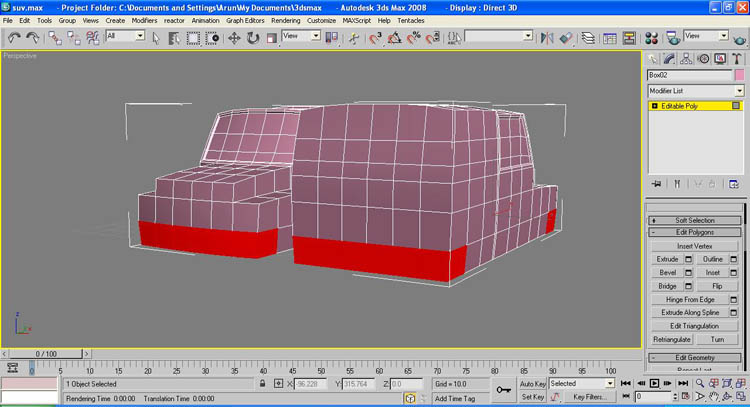

* select the Polygons shown in the picture for creating a bumper and extrude them using local normal todo 1.5 units.

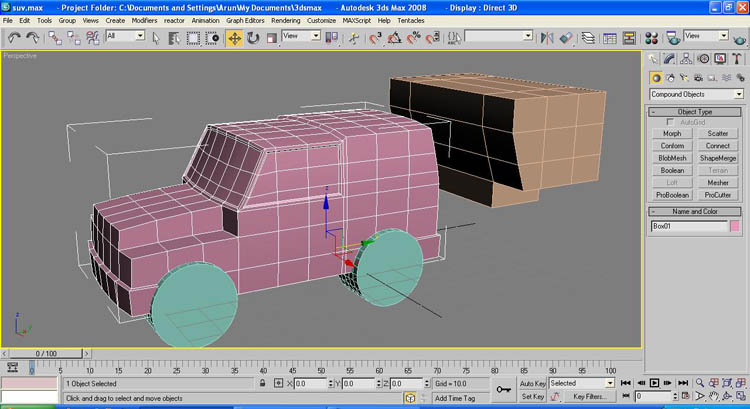

Now is the time for creating whel arches, bak dickey. We Will use the bolean compound object here. For that we Will create 4 cilindros for whel arches and a box modified using editable polygon method, as the dickey which i shown in the picture.

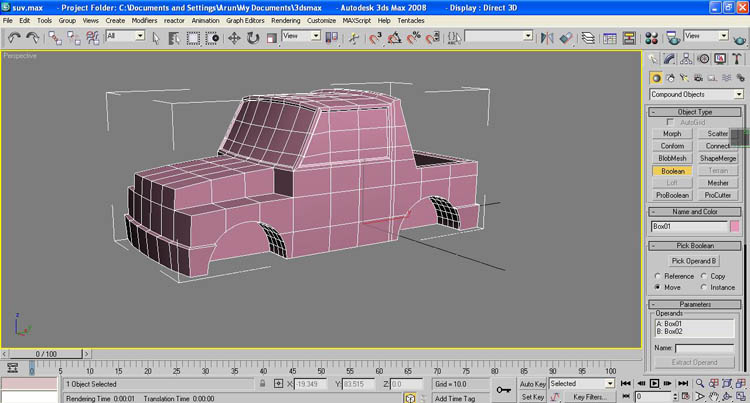

* for bolean we Will use a trick. We Will attach four cilindros and the dickey object together from edit geometry>attach because After this max Will consider it as a single object and we can use the bolean operación only once.


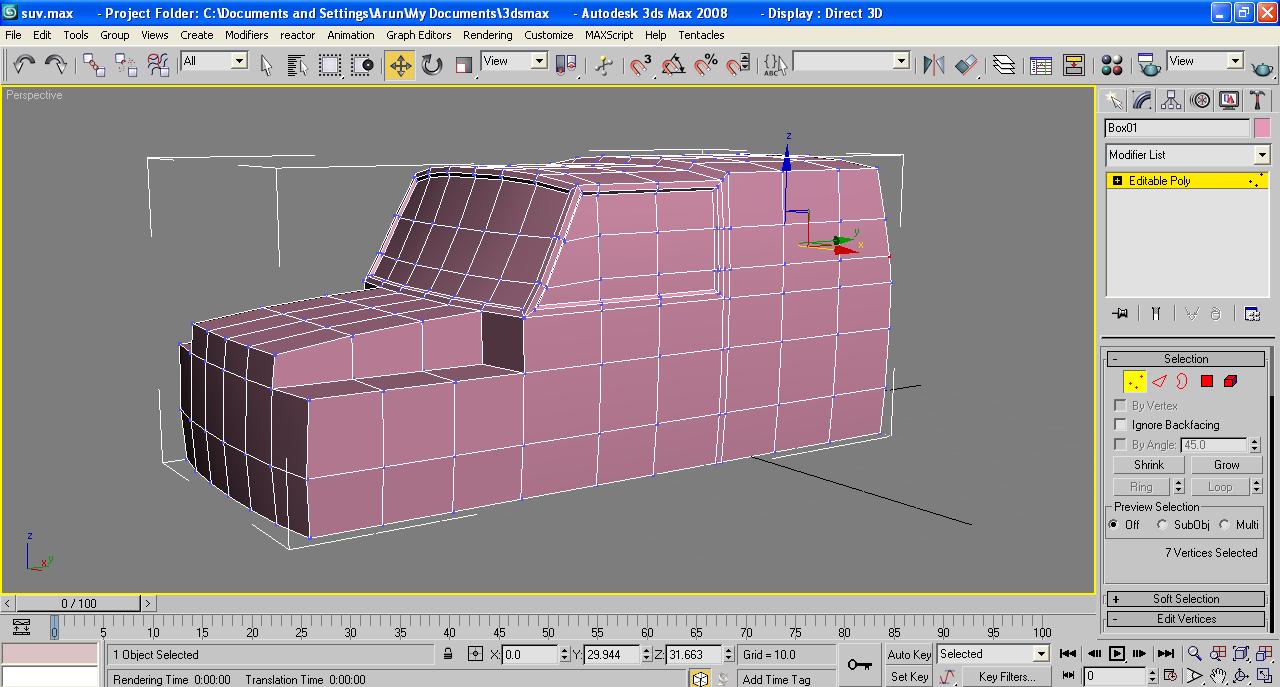

* i used some tubes and Splines todo modify the suv like this.its upto todo you.

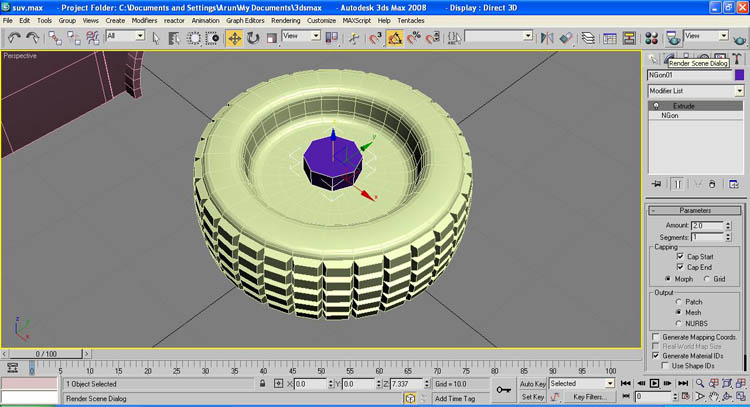

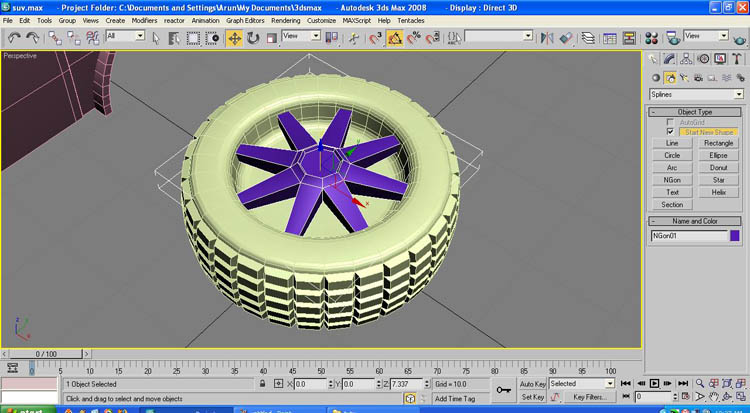

* its almost finished, we are going todo make a tyre. From a chamfer cylinder and an extruded Ngon, we can make it very easily like this.

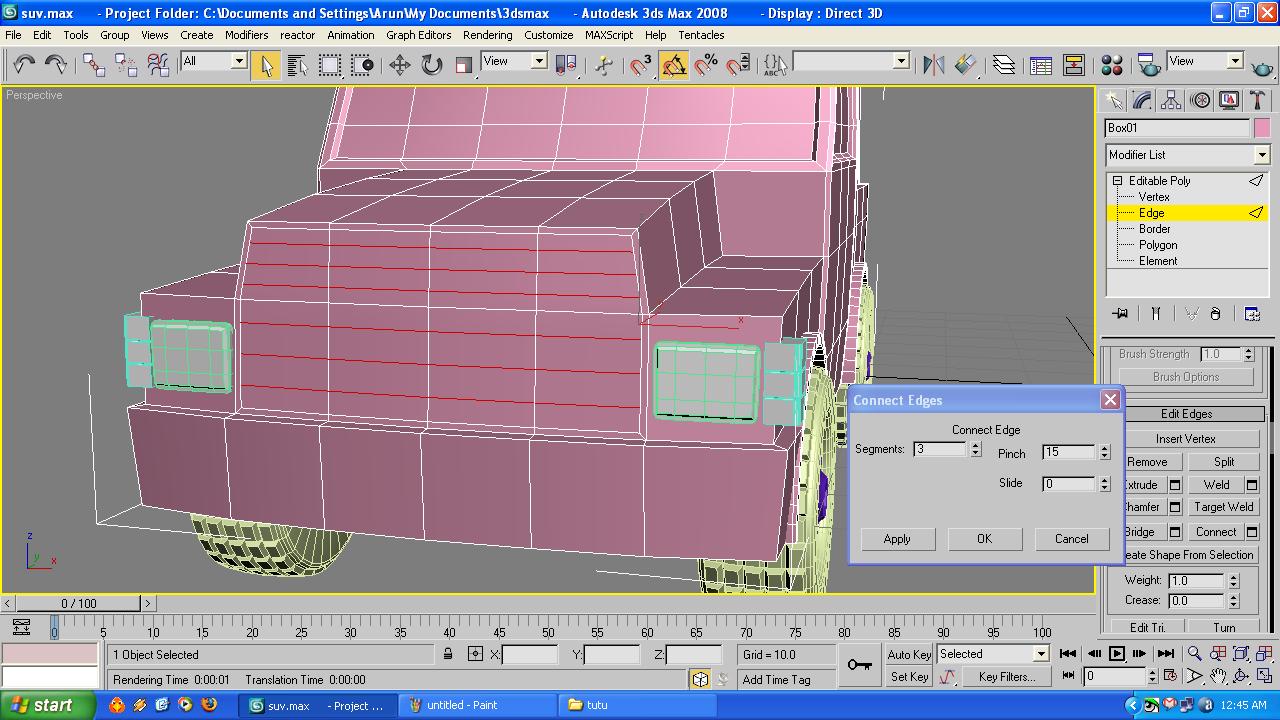

* now for the front grill. First we Will create new Edges in the front using connect option.


* and then extrude the Edges with a small value like in the pic.

Done. You have almost completed your box model. Its very easy and efective for a begginer.
